PYROVIEW thermal imaging cameras – thermography for industry, research, and surveillance
Our PYROVIEW thermal imaging cameras deliver precise thermographic data for demanding industrial applications, fire protection systems, and research projects. Whether for stationary monitoring or integration into automated processes, our cameras offer reliable real-time temperature measurements with infrared resolutions up to 1920×1080 pixels.
Precise thermography solutions for your project
For industrial applications and continuous process monitoring: precise temperature data, robust cameras, and fast evaluation. Request your individual quote.

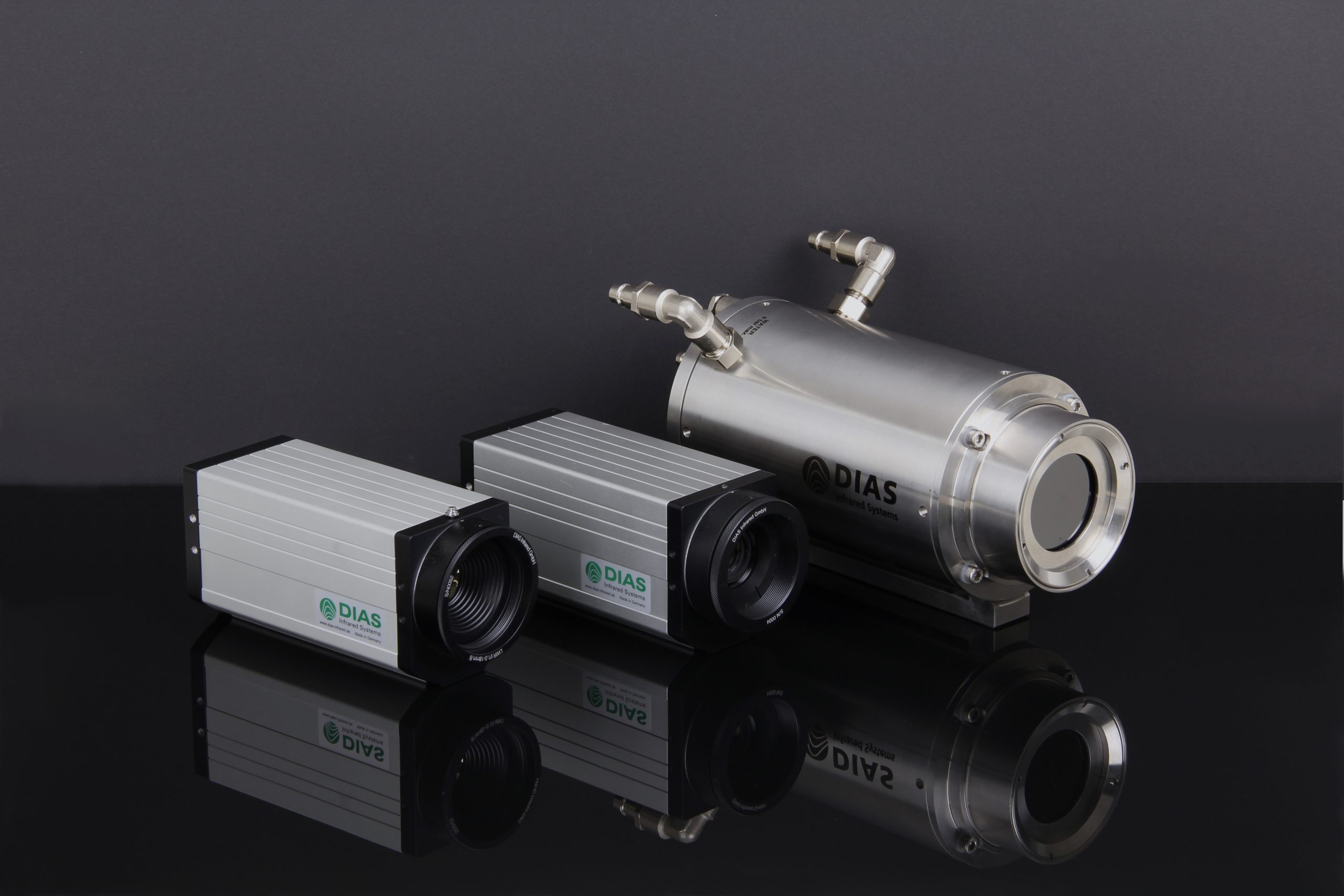

Advantages of PYROVIEW thermal imaging cameras
Our self- developed IR cameras offer numerous advantages:
✅ HD resolution for detailed IR images
Experience high-precision thermography with a thermal resolution of up to 1920 × 1080 pixels. Ideal for applications where even the smallest temperature differences need to be made visible.
✅Wide temperature measurement range: –20°C to 3000°C

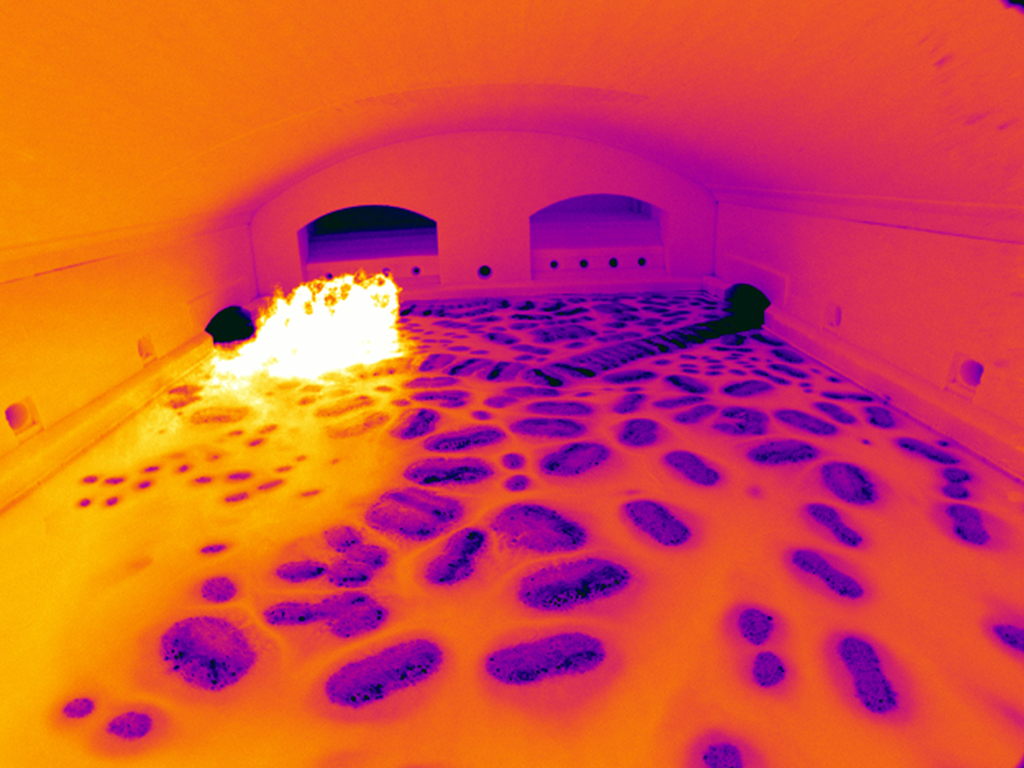

Our cameras cover an exceptionally wide range – from low temperatures in laboratories to extreme conditions in melting furnaces or metal processing.
✅Reliable GigE real-time data transmission
All PYROVIEW models transmit measurement data in real time via Gigabit Ethernet (GigE) – for stable, fast communication in automated systems.

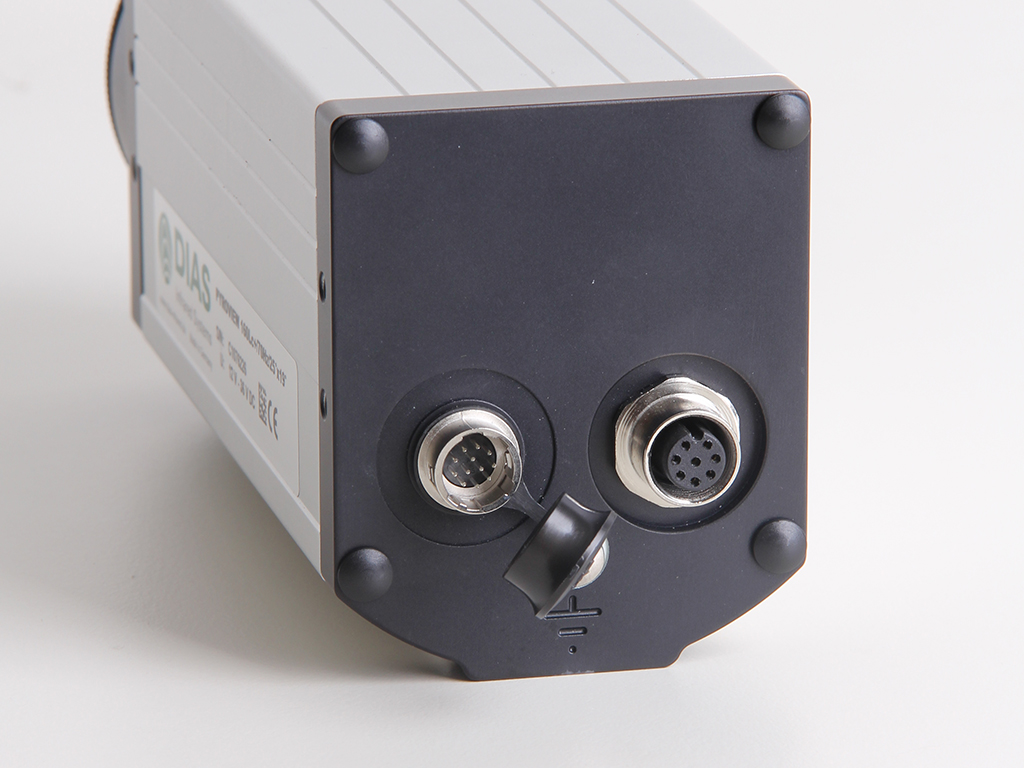

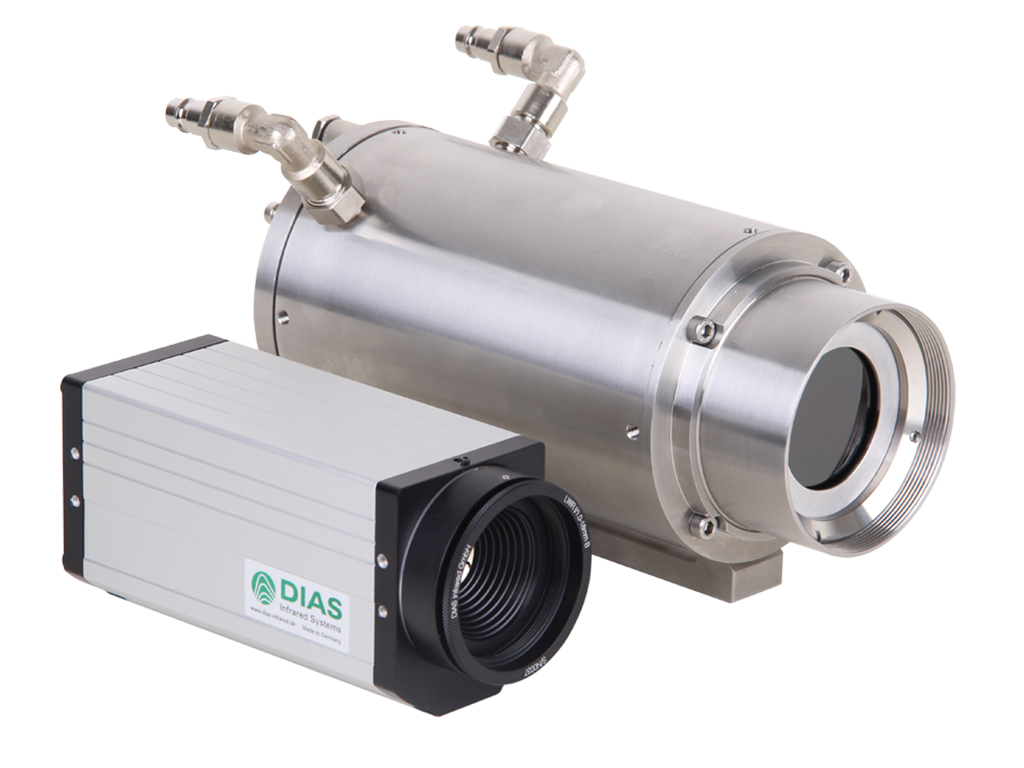

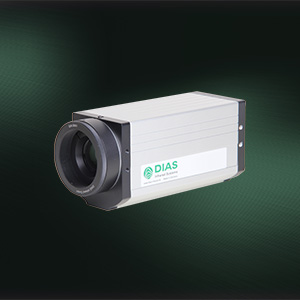

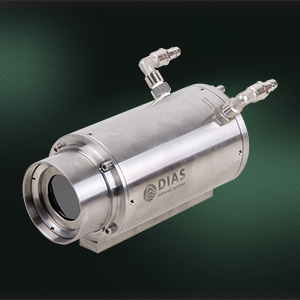

✅Flexible housing design: Compact+ (IP54) or Protection (IP65)
Whether you need a compact design for research and development or a protected housing for harsh industrial environments, you can choose the model that best suits your requirements.
✅Flexible software integration & intuitive operation
Use the PYROVIEW camera with your existing software environment or work with our specially developed PYROSOFT software.
✅Made in Germany – Technology leader for over 30 years
Trust in proven quality, developed and manufactured in Germany. Our products are used worldwide by leading industrial companies and research institutions.
Model overview IR cameras PYROVIEW
| Camera type | Pixels | Temperature range | Spectral range | Application |
|---|---|---|---|---|
| PYROVIEW 380L | 384 x 288 | -20 °C to 500 °C | LWIR | Early fire detection, process monitoring, R & D |
| PYROVIEW 640L | 640 x 480 | -20 °C to 500 °C | LWIR | Quality control, process monitoring, R & D |
| PYROVIEW 640M | 640 x 480 | 200 °C to 500 °C | MWIR | Metal and ceramics industry |
| PYROVIEW 640G | 640 x 480 | 300 °C to 700 °C | MWIR | Glass industry |
| PYROVIEW 640F | 640 x 480 | 600 °C to 1250 °C | MWIR | Measurement through flames and gases |
| PYROVIEW 512S | 512 x 408 | 300°C to 1200 °C | SWIR | Metal and ceramics industry |
| PYROVIEW 512N | 512 x 384 | 600 °C to 3000 °C | NIR | Metal industry |
| PYROVIEW 768N | 768 x 576 | 600 °C to 3000 °C | NIR | Metal industry |
| PYROVIEW 1600N | 1600 x 1200 | 650 °C to 1800 °C | NIR | Metal industry |
| PYROVIEW 1920N | 1920 x 1080 | 650 °C to 1800 °C | NIR | Metal industry |
Overview of our PYROVIEW IR camera models
Typical applications
of our thermal imaging cameras PYROVIEW

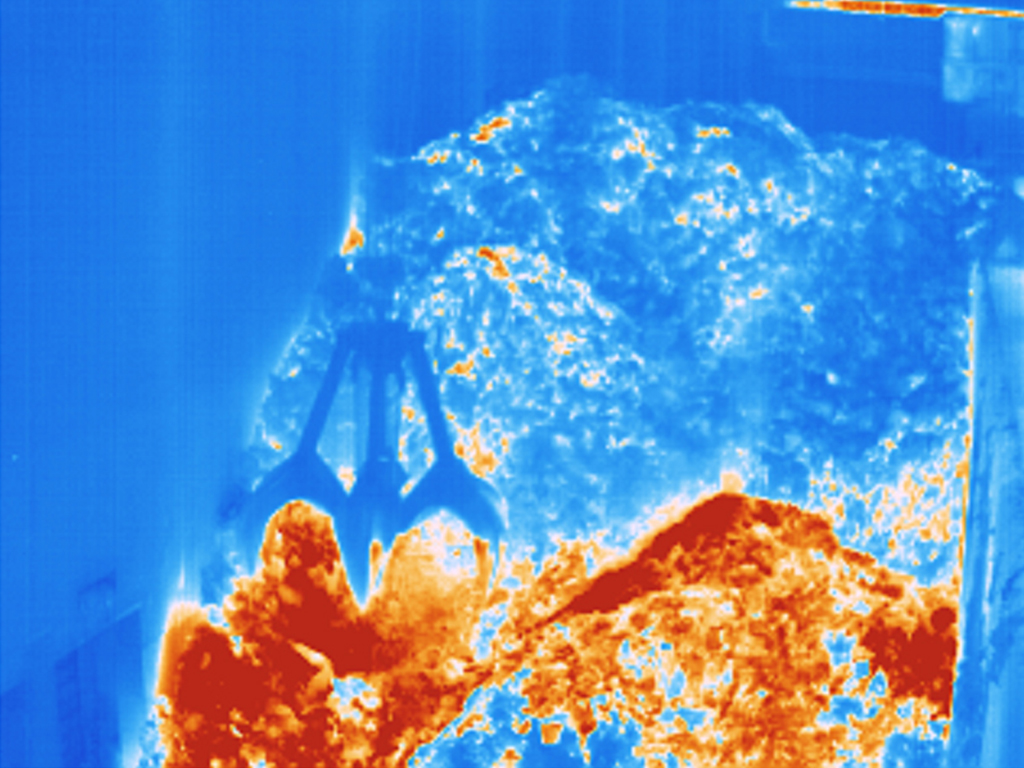

🔥 Fire protection and early fire detectionyroview_dias_branderkennung

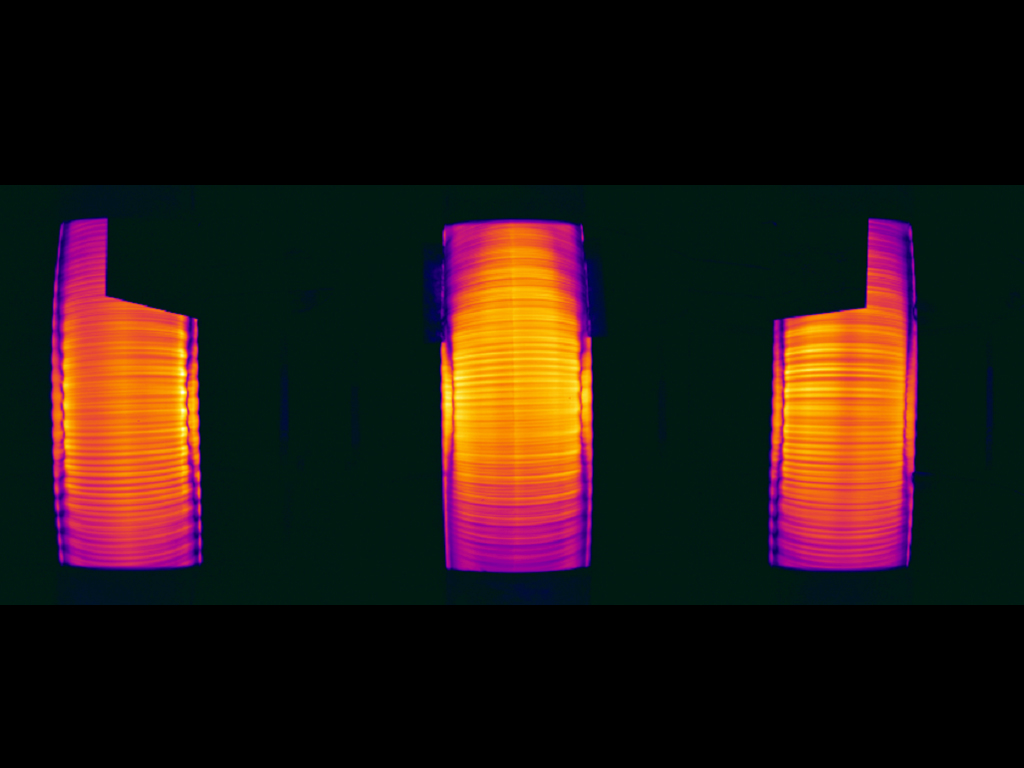

🏭 Process monitoring in industry
🧪 Research & Delevopment

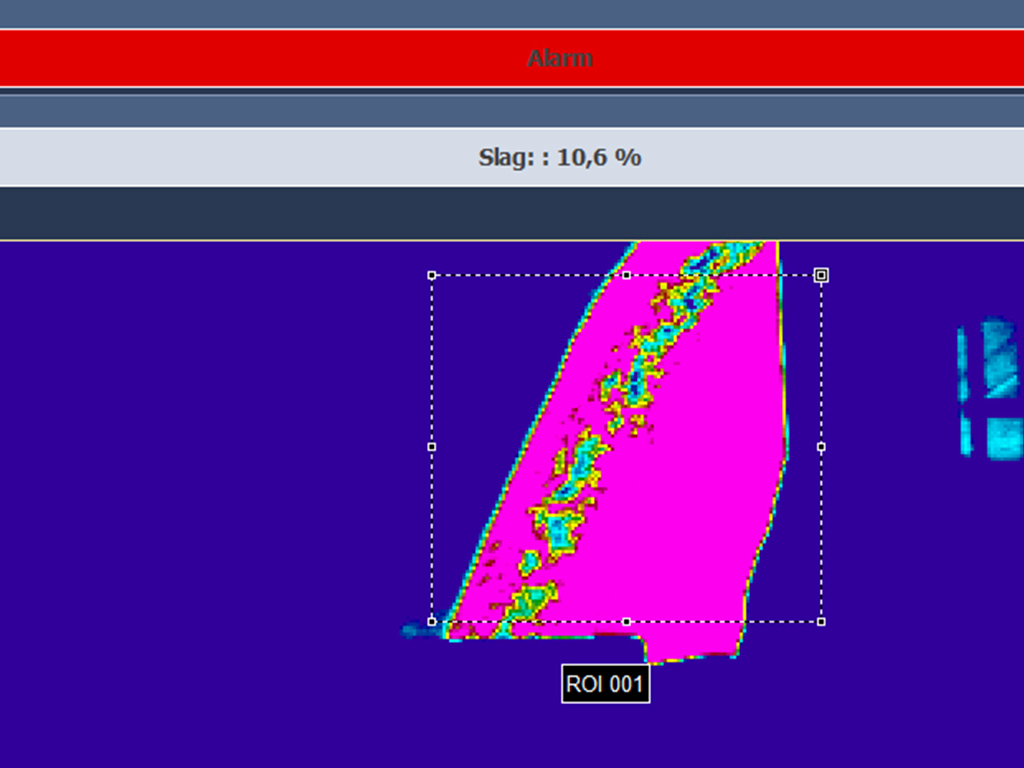

🌡 Automated temperature measurement

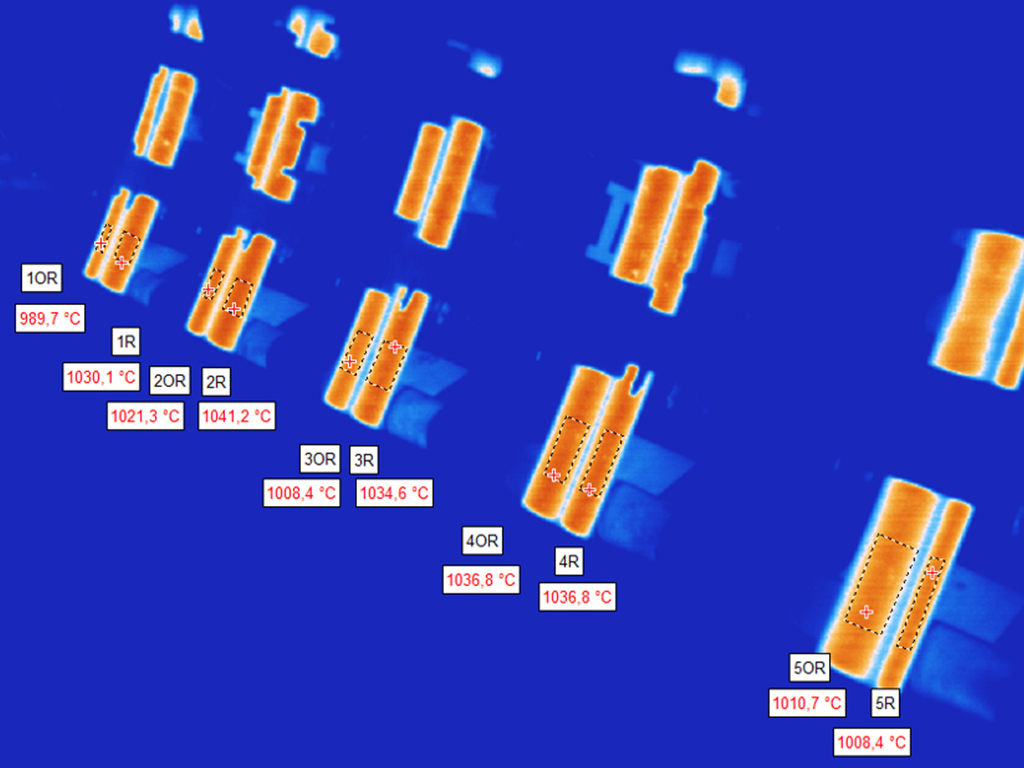

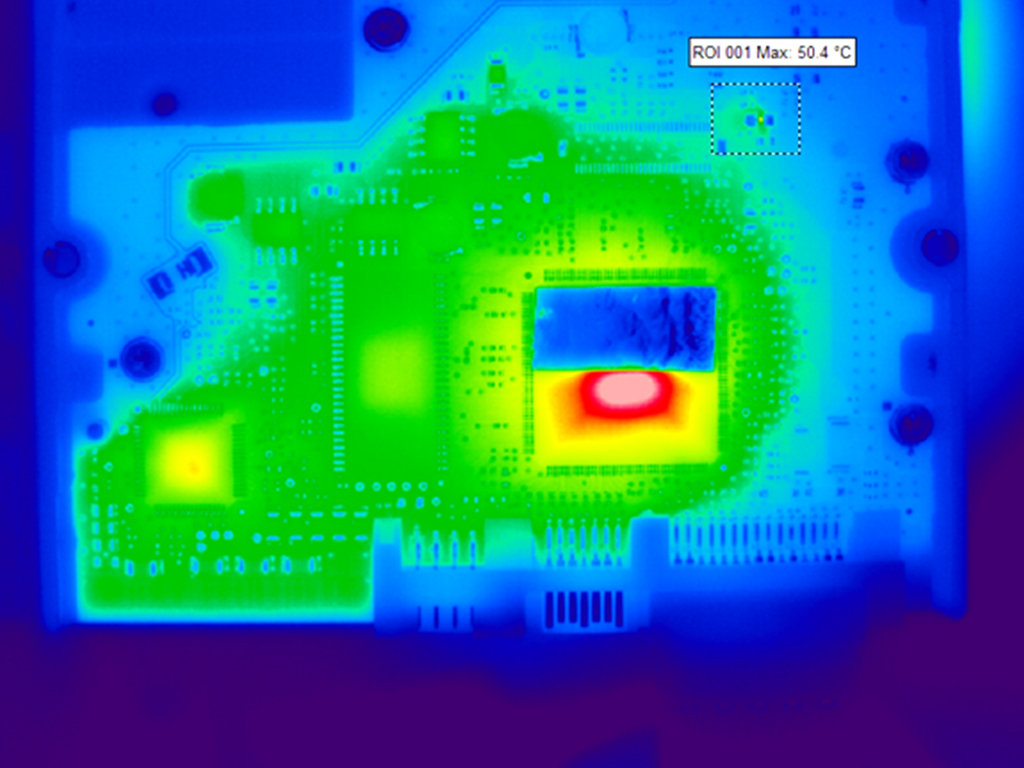

🔍Quality control (steel, metal, glass, cement, ceramics)

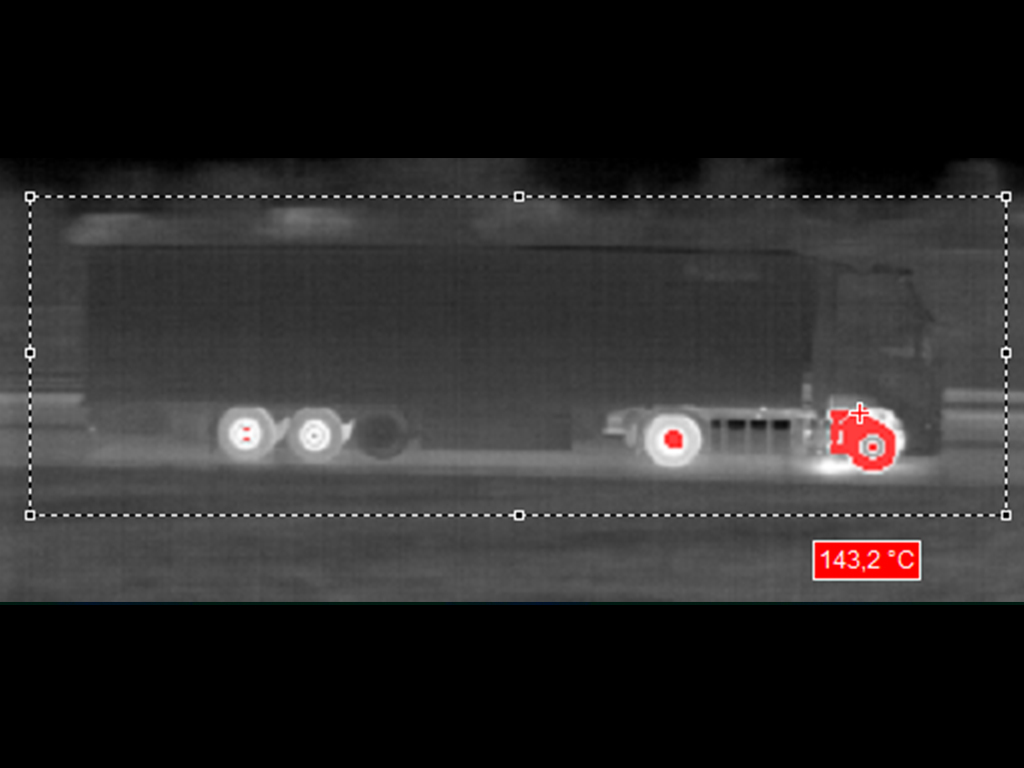

🚦Traffic monitoring in tunnels

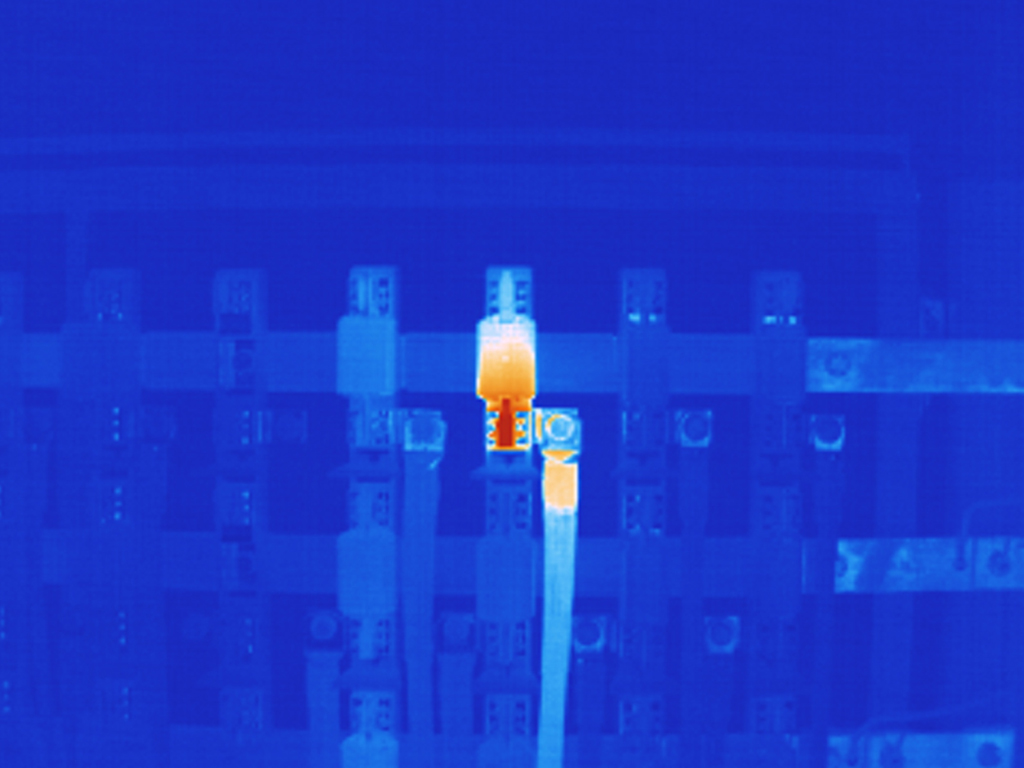

⚡Inspection of electrical installations

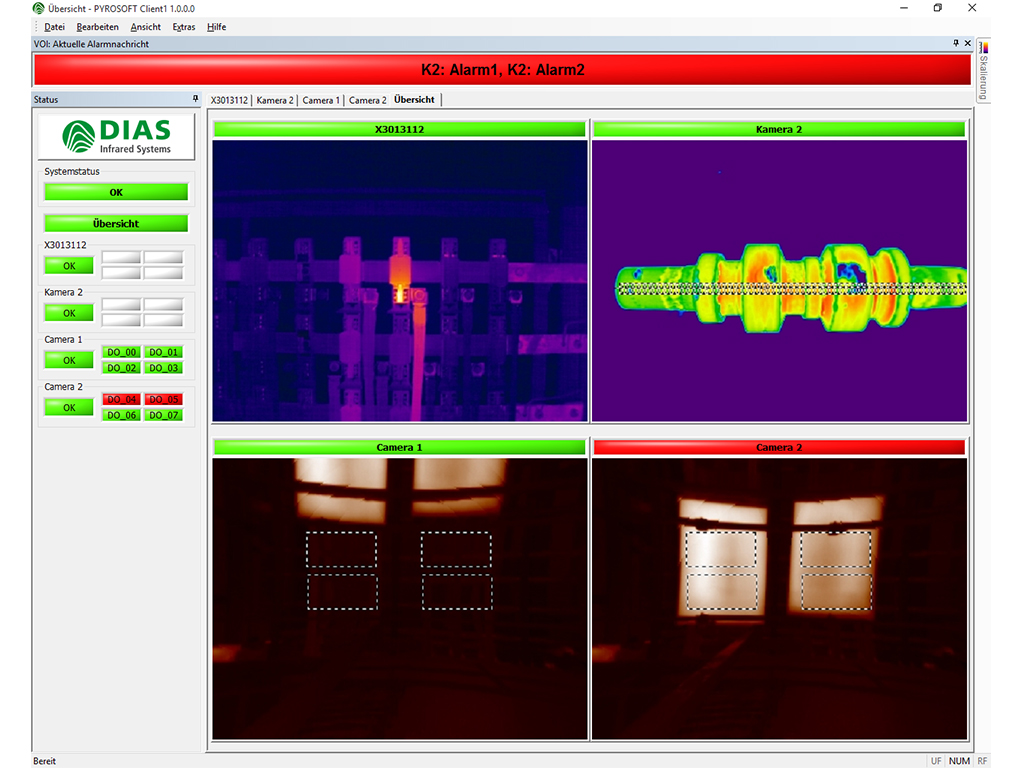

Software & interfaces
DIAS’s proprietary software “PYROSOFT” enables fully automatic control, data acquisition, and evaluation. PYROSOFT enables the input/output of analog/digital values via the IO system, direct bidirectional connections to the PLC via LAN (PROFIBUS, PROFINET, WAGO, Modbus, OPC, TCP socket, text file).
The advantages are obvious
- Over 30 years of experience in thermography
- Development and production in Germany
- Consulting, installation, and service: customized and professional
- Certified quality (ISO 9001)
- Qualified personnel with many years of experience in the field of infrared measurement technology
📩 Request a project now or fill out the questionnaire!
Start questionnaire
Do you already know what application you are planning? Then our structured questionnaire will help you systematically record all the important requirements for your thermal imaging camera.
